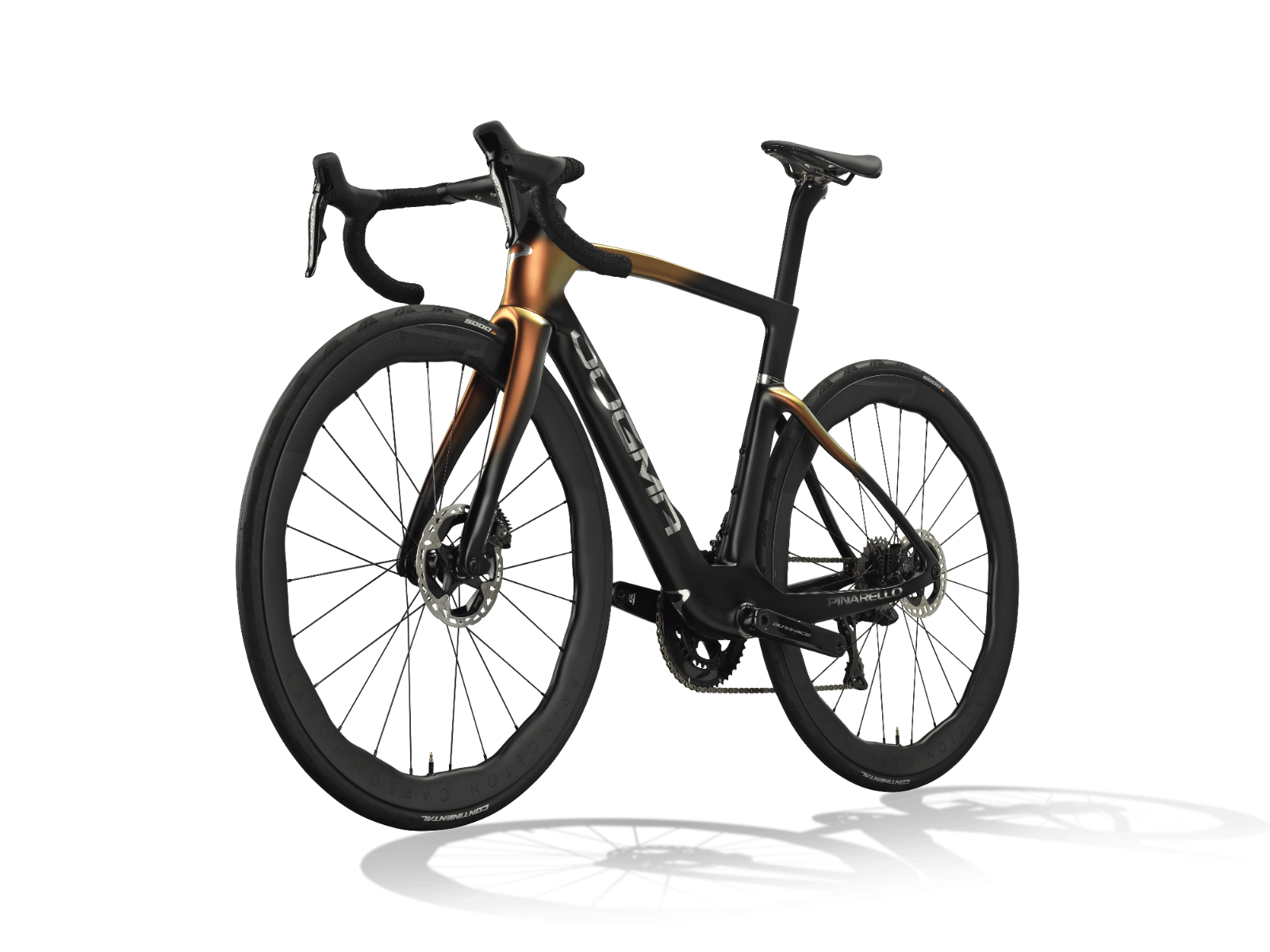

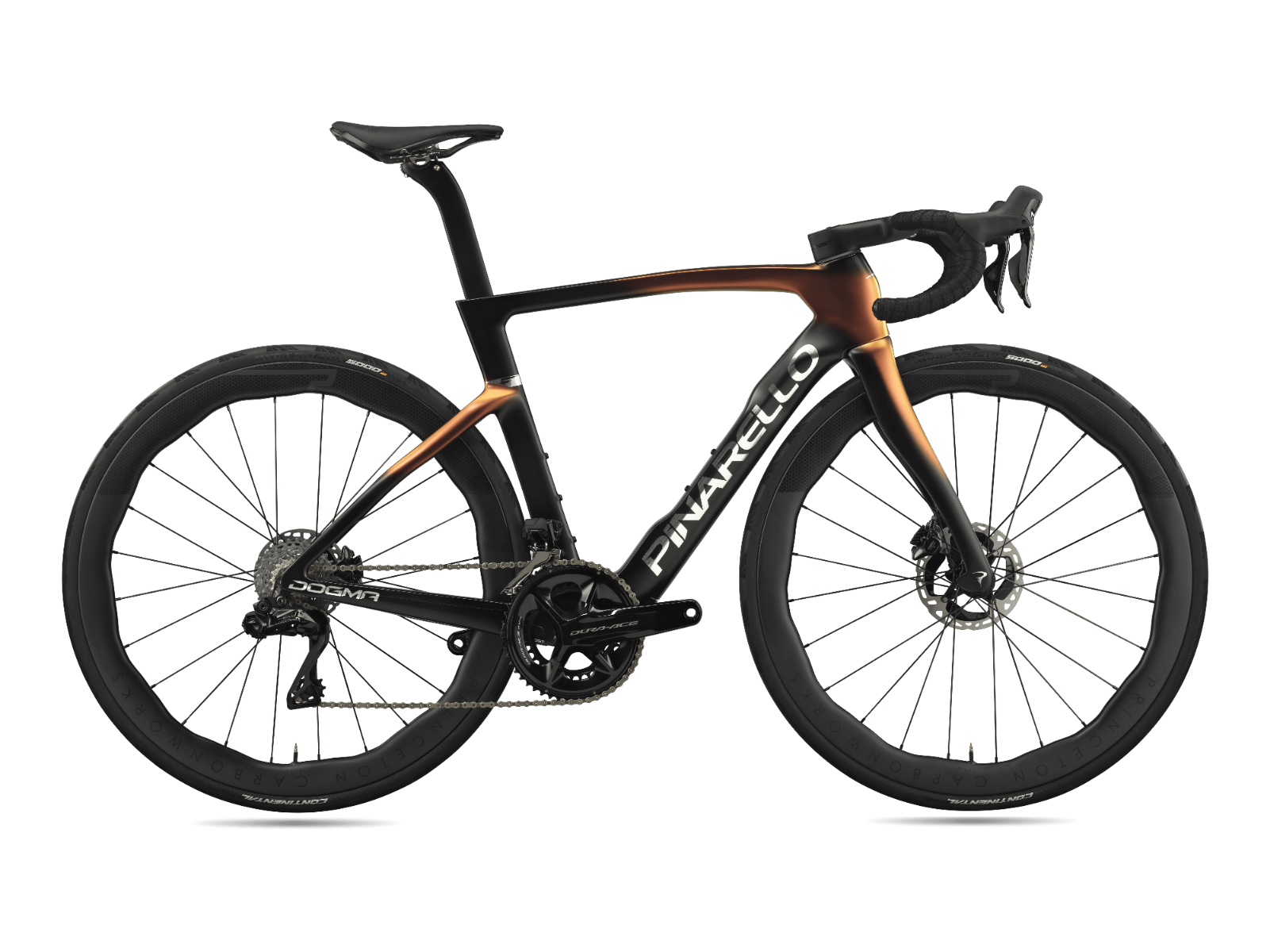

Pinarello Dogma F Disc | Luxter Red Gold

SIZE: 56

The new DOGMA F, the lightest ever

Evolution passes through a new skin thanks to the new TorayCa M40X carbon, which compared to the previous T1100:

+ lateral stiffness

+ weight / stiffness ratio

+ handling

DOWN TUBE Completely redesigned. The goal was to reduce the thickness focusing on the frontal aerodynamic impact. In addition, the down tube of the new Dogma F has been rotated by 3.5° compared to the previous one.

TOP TUBE The first exclusive ‘nose’ shape was introduced on the Dogma F8 in 2014. Ten years later it has been maintained and revised in a modern key, reducing the width by 8 mm.

SHORTER THRU AXLES represent an innovation both from an aerodynamic and aesthetic point of view. The bolts on the right side of the fork and the rear stay have been integrated into the frame.

NEW DOGMA FORK New slimmer design and 47 mm rake, this feature improves handling while also increasing downhill speed.

INTEGRATED SEATPOST SYSTEM The clamp has been renewed, made smaller and integrated inside the frame, thus reducing the total weight of the system as well as having a clean and modern design.

ALL COMPONENTS
FRAMESET
FRAME
TorayCa M40X, TiCR™ cable routing, Italian BB
FORCE
NEW eTICR Onda fork with ForkFlap™, 1.5' upper and lower steerer
WEIGHT
6.77 kg. Weight in size 53, Shimano Dura Ace, Princeton Peak 4550 wheels, without pedals and without water bottles

DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Dura Ace FC-R9200, HollowTech 2, 12-speed
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-9200 11-speed
REAR DERAILLEUR
Shimano Dura Ace Di2 RD-R9200 12-speed
CASSET
Shimano Dura Ace CS-R9200 12-speed
CHAIN
Shimano Dura Ace CN-HG 12-speed
BOTTOM BRACKET
Shimano Dura Ace SM-BB9200

BRAKES
FRONT DISC
Shimano Dura Ace BR-R92000 2-piston caliper, 160mm rotor
REAR DISC
Shimano Dura Ace caliper BR-R92000 2-piston, 140mm rotor

COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Veloce
HANDLEBAR TAPE
most handlebar tape
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium seat clamp and titanium hardware

WHEELS & TIRES
DISC TIRES
Gran Premio Continentale 5000S TR28-622
WHEEL DISC
PRINCETON PICCO 4550 DB*
DISC AXLES
NEW MOST Ultra Light Custom 12x100 and 12x142 axle, tool-free removal
